DR-UPS40

Meanwell DIN Rail Mounting 40 Amps DC UPS Module, Input: 24-29 Vdc; Input DC Bus Rated Current: 40 Amps; Battery Input/Output: 21-29 Vdc, 0-40 Amps, Charge Current: 2 Amps; WxHxD: 55.5x125.2x100mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon DR-UPS40
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Battery Controller for DIN Rail UPS system
  • Parallel connection to DC BUS
  • Suitable for 24V system up to 40A
  • Built-in Battery Test function
  • Battery Polarity Protection
  • Relay contact signal output and LED indicator for DC BUS OK, Battery Fail and Battery Discharge
  • Cooling by free air convection
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: DR-UPS40
Output Voltage (DC): 21-29 Vdc
Output Current (A): 0 - 40.0 A
Product Type: DC UPS Module
Mounting Type: DIN Rail Mounting
Input Voltage (DC): 24-29 Vdc
Cooling by: Free Air Convection
EMC Emission: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020

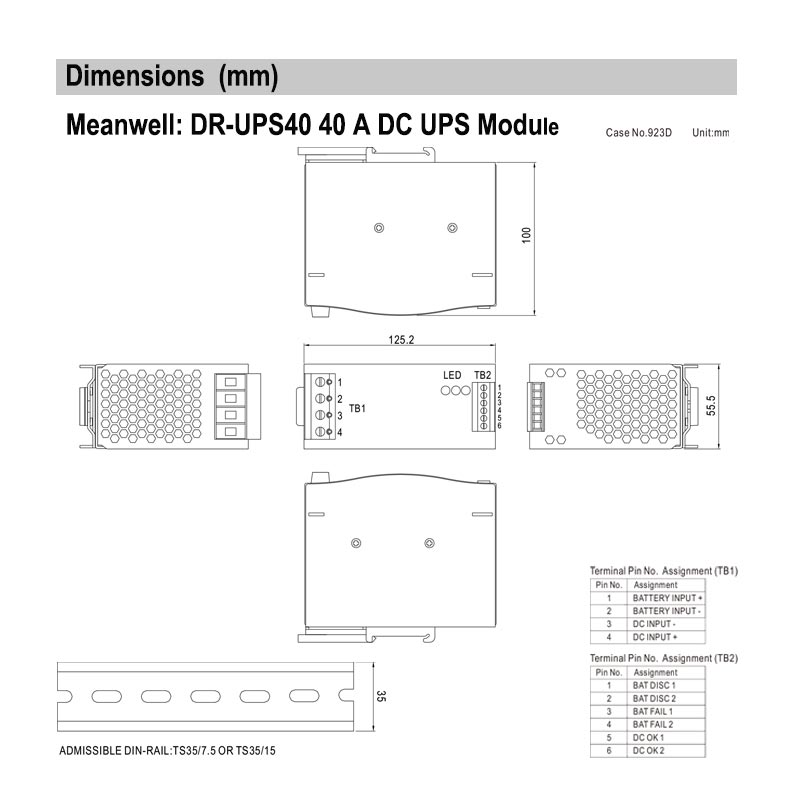

Dimensions WxHxD (mm): 55.5x125.2x100mm
Weight/Piece (gms): 550
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
