16035 16A

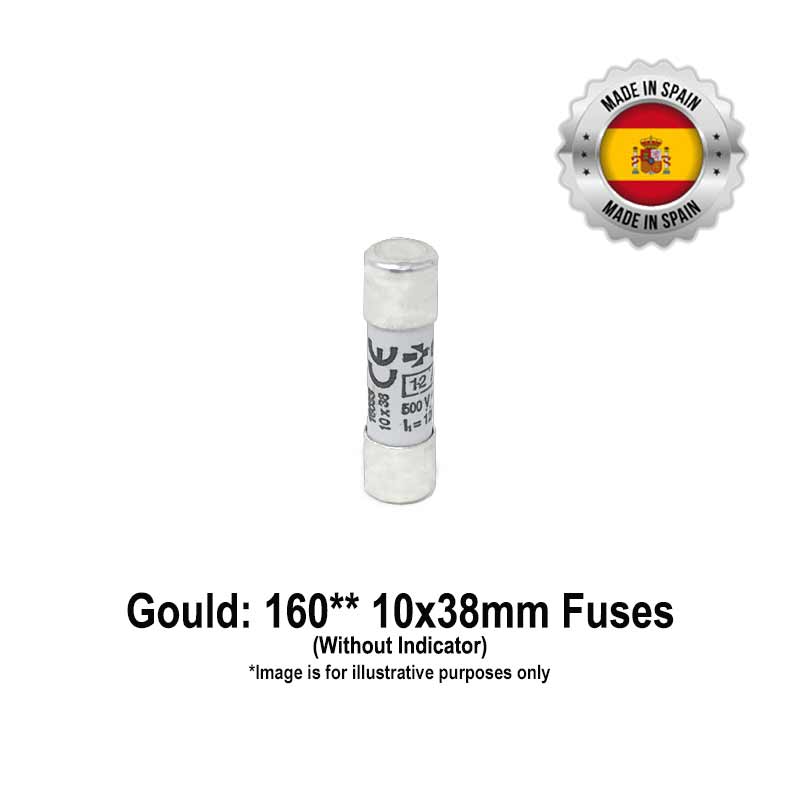

Gould Industrial Cylindrical Fuses: 16 Amps, 500 Vac/120 kA, Operating Class: gL-gG, Size: 10x38mm, without Indicator
Country of Origin :
Spain
Technical Datasheet:
16035 16A
Product Salient Features:
- Class gL-gG Industrial Cylindrical Fuses
- Breaking Capacity: 120 kA
- Confirming to IEC, NFC, UNE Standards
- Approved by Lloyds Register of Shipping and Bureau Veritas
Optional
- Available Rated Current: 0.5, 12, 16 Amps
- Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Gould
Series: 160**
Fuse Type: Cylindrical gL-gG
Current Rating (A): 16 Amps
Voltage Rating (Vac): 500 Vac
AC Breaking Capacity (kA): 120 kA

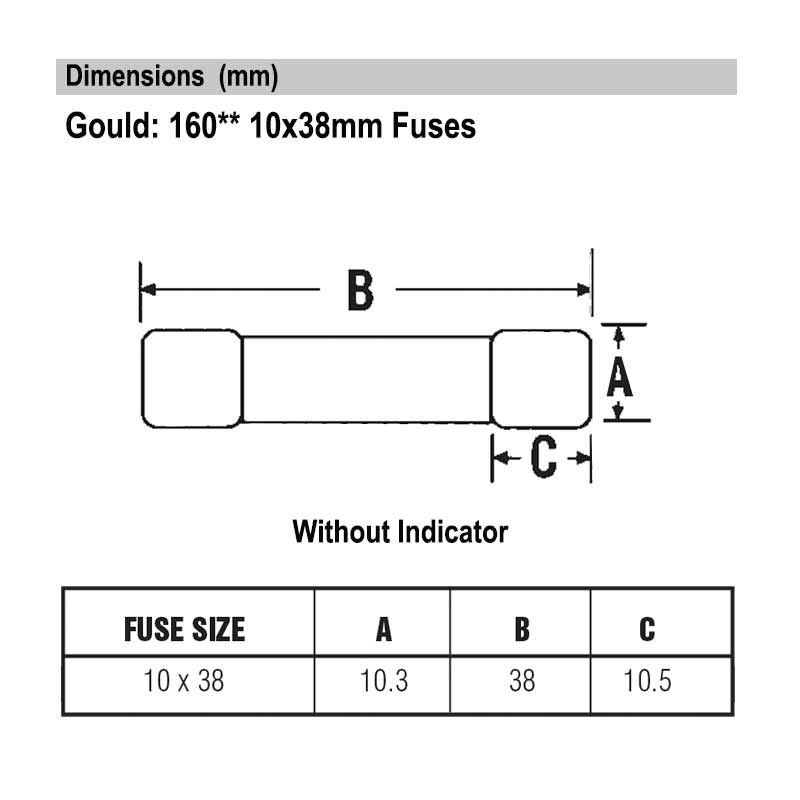

Size: 10x38mm
Power Loss (W): 1.6 W
Fuse Blown Indicator: NA
Standards: IEC, NFC, UNE, CE
Packaging Quantity (Pcs.): 10
Special Notes
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
