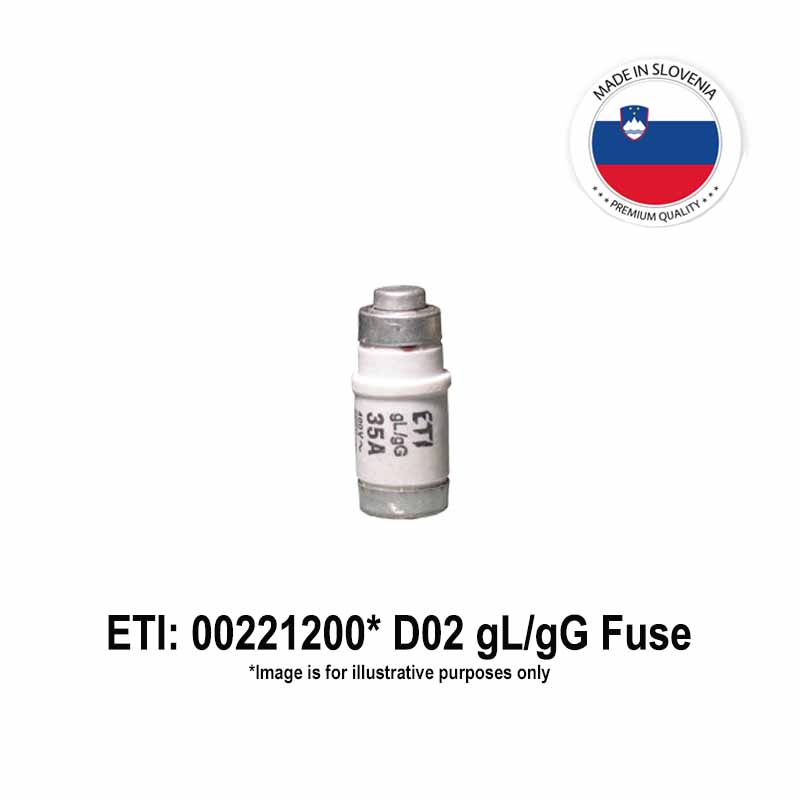

002212003 D02 35A

ETI D02 gG-Fuse: 35 Amps, 400 Vac/50 kA, 250 Vdc/8 kA, Operating Class: gG, Type: D02, for Fuse Base Size: E18

Manufacturer: ETI
Country of Origin : Slovenia EU
Technical Datasheet:
Packaging Quantity: 10
Minimum Order Quantity: 10
Order in Multiples of Quantity: 10
Required Quantity:
Price on Request

Product Salient Features:

  • Class gG D0-Fuses
  • Suitable for protection of Electrical Installations, Control and Signal Circuits against Over-Load and Short-Circuit currents
  • Confirming to IEC 60269-3-1, DIN EN 60269-3, DIN VDE 0636-301, HD 630.3.1, DIN EN 60269-1, EN 60947-1, EN 60947-3
  • All Fuses have blown fuse indicator
  • Fuse Bases/Holders and Accessories are available on request at extra cost

Optional

  • Available Rated Current: 20, 25, 35, 50, 63 Amps
  • Wide range of Fuse-Bases / Holders and Accessories available
Technical Data
Manufacturer: ETI
Series: 00221200*
Fuse Type: D02 Gg
Operating Class: gG
Current Rating (A): 35 Amps
Voltage Rating (Vac): 400 Vac
AC Breaking Capacity (kA): 50 kA
Voltage Rating (Vdc): 250 Vdc
DC Breaking Capacity (kA): 8 kA
Size: D02 / E18
Fuse Blown Indicator: Yes
Standards: IEC 60269-3-1, DIN EN 60269-3, DIN VDE 0636-301, HD 630.3.1, DIN EN 60269-1, EN 60947-1, EN 60947-3
Packaging Quantity (Pcs.): 10
Weight (Grams): 13
