002211003 D01 6A

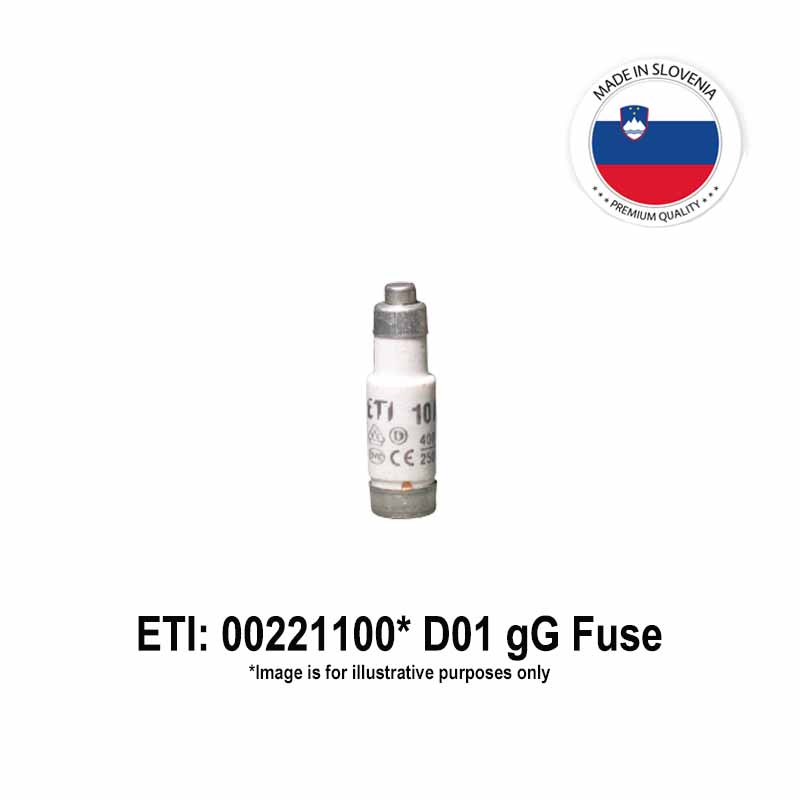

ETI D01 gG-Fuse: 6 Amps, 400 Vac/50 kA, 250 Vdc/8 kA, Operating Class: gG, Type: D01, for Fuse Base Size: E14
002211003 D01 6A
Product Salient Features:
- Class gG D0-Fuses
- Suitable for protection of Electrical Installations, Control and Signal Circuits against Over-Load and Short-Circuit currents
- Confirming to IEC 60269-3-1, DIN EN 60269-3, DIN VDE 0636-301, HD 630.3.1, DIN EN 60269-1, EN 60947-1, EN 60947-3
- All Fuses have blown fuse indicator
- Fuse Bases/Holders and Accessories are available on request at extra cost
Optional
- Available Rated Current: 2, 4, 6, 10, 16 Amps
- Wide range of Fuse-Bases / Holders and Accessories available
Technical Data
Manufacturer: ETI
Series: 00221100*
Fuse Type: D01 gG
Current Rating (A): 6 Amps
Voltage Rating (Vac): 400 Vac
AC Breaking Capacity (kA): 50 kA
Voltage Rating (Vdc): 250 Vdc
DC Breaking Capacity (kA): 8 kA
Size: D01 / E14
Fuse Blown Indicator: Yes
Standards: IEC 60269-3-1, DIN EN 60269-3, DIN VDE 0636-301, HD 630.3.1, DIN EN 60269-1, EN 60947-1, EN 60947-3
Packaging Quantity (Pcs.): 10
Weight (Grams): 6
Special Notes

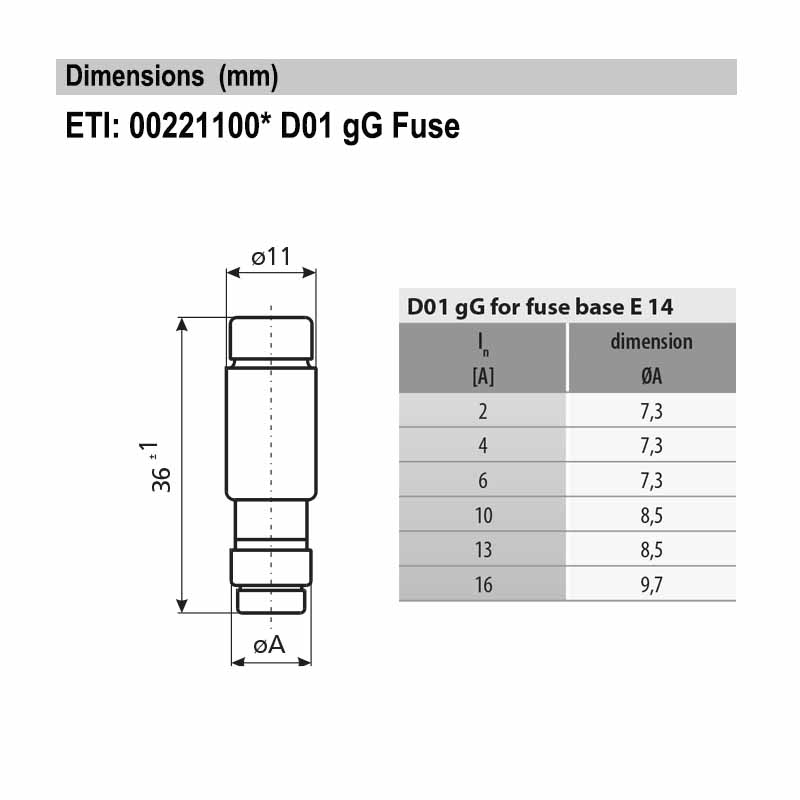

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
