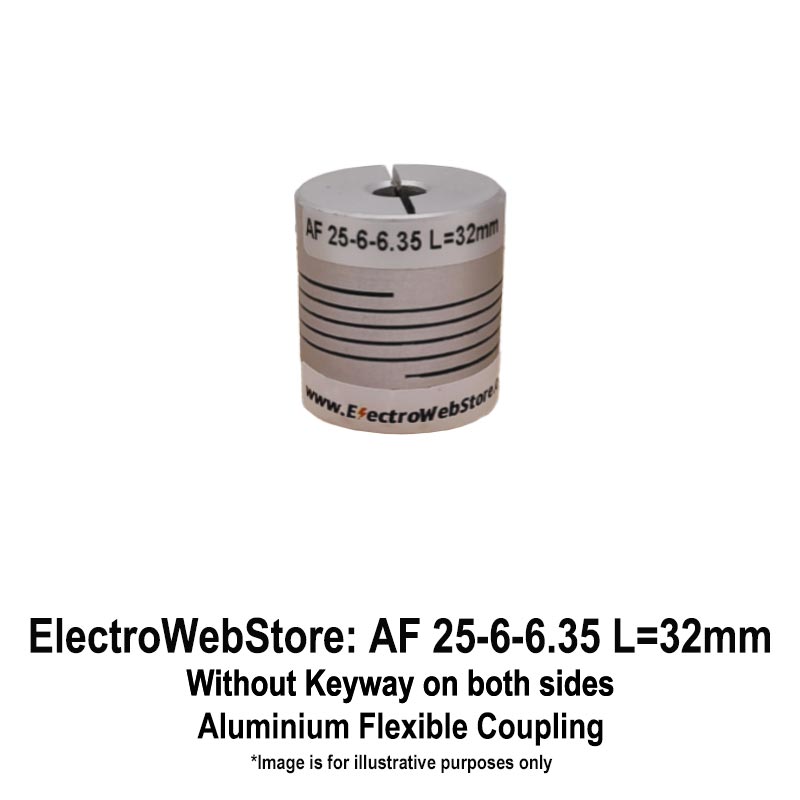

AF-25-6-6.35 L: 32mm (Without Keyway on both sides)

Aluminium Flexible Shaft Coupling: OD: 25mm; ID1: 6mm without Keyway; ID2: 6.35mm without Keyway; Length: 32mm

Manufacturer: ElectroWebStore
Country of Origin : India
Packaging Quantity: 1
Minimum Order Quantity: 5
Order in Multiples of Quantity: 5
Required Quantity:
Price on Request

Features

  • Made from Aluminium Alloy
  • Series "AF" has inbuilt flange clamping
  • Angular offset up to 5 Degrees
  • Parallel offset up to 0.2mm - No Backlash
  • Constant velocity transmission
  • Torsionally rigid
  • One piece construction

Optional

  • Available in different Bore Sizes (Diameter)
  • Higher Torsional Torque versions available on request
  • Assorted Clamping types
  • Available in assorted material (Stainless Steel; Brass; Nylon) on request
  • Optionally available with insert for electrical/thermal isolation
Technical Data
Manufacturer: ElectroWebStore
Series: AF
Material : Aluminium Alloy
Outer Diameter : 25mm
ID1 Bore Diameter : 6mm
ID1 Keyway : Without Keyway
ID2 Bore Diameter : 6.35mm
ID2 Keyway : Without Keyway
Total Length : 32mm
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
