ATD2SA4Y7.12/12.SS.BI.D2SR12.S10.IP65.002

ATD2SA4Y7.12/12.SS.BI.D2SR12.S10.IP65.002

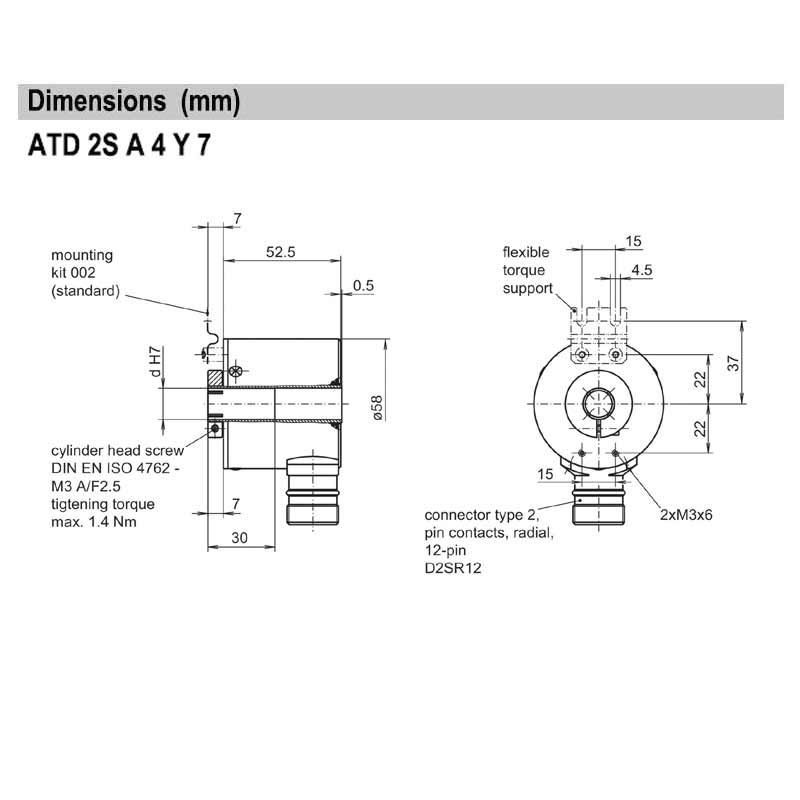

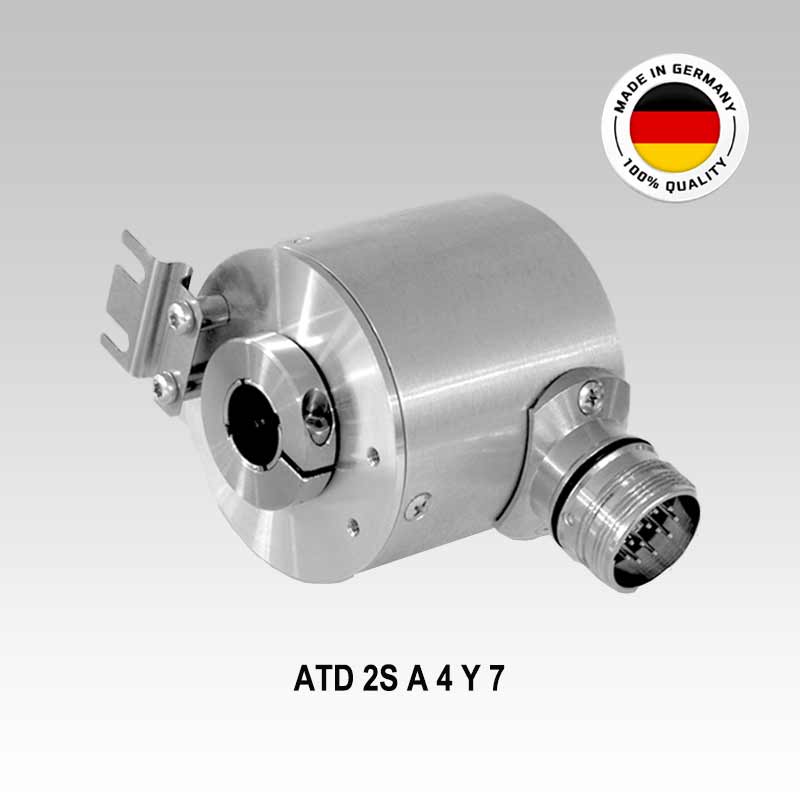

Through Hollow Shaft Optical SingleTurn + Magnetic MultiTurn Absolute Encoder; With Mounting Kit 002; Bore Dia. 10mm, Clamping Ring on A-Side; Supply Voltage: 10 to 30 Vdc; Interface: Serial SSI; Output Signal: Binary Code; Absolute Resolution: 12-Bit ST+12-Bit MT; Connection: Flange Connector-Radial, M23, 12-Pin Male Contacts; IP 65

Manufacturer: Baumer Thalheim

Country of Origin : Germany

Technical Datasheet:

ATD2SA4Y7.12/12.SS.BI.D2SR12.S10.IP65.002

Packaging Quantity: 1

Minimum Order Quantity: 1

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

SingleTurn Optical + MultiTurn Magnetic Absolute Encoder
Body Size Dia. 58mm
Through Hollow Shaft, Bore Dia. 10mm, Clamping Ring on A-Side
Absolute Resolution: 12-Bit SingleTurn + 12-Bit MultiTurn
Serial SSI, Binary Code
Self-diagnostic
Electronic zero point adjustment
High protection IP 65 (Standard Version)

Optional

Absolute Resolution: 9/12 Bit ST/MT; 10/12 Bit ST/MT; 11/12 Bit ST/MT; 13/12 Bit ST/MT
Output Signal: Gray Code
Bore Dia.: 12 mm, 14 mm
Flange Connector M23, 17-Pin, Radial

Technical Data

Manufacturer : Baumer Thalheim

Shaft Type : Through Hollow Shaft

Shaft (S)/Bore (B) Dia. : S: 10 mm

Mounting Type : Mounting Kit 002

Encoder Type : Absolute ST+MT

Sensing Method : Optical + Magnetic

Supply Voltage : 10 to 30 Vdc

Connection Type : Flange Connector Radial - M23 12-Pin

Operating Temperature : From -20 °C to +85 °C

Protection : IP 65

Approval : CE

Weight : 0.325 KG
