LBFS-A1421.0

CleverLevel Point Level Measurement Sensor; SS Housing; cUL listed, E365692; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Polycarbonate with LED; Process Connection: G 1/2A Hygienic(A03), SS AISI 316L (1.4404); Output: PNP; Factory configured

Manufacturer: Baumer

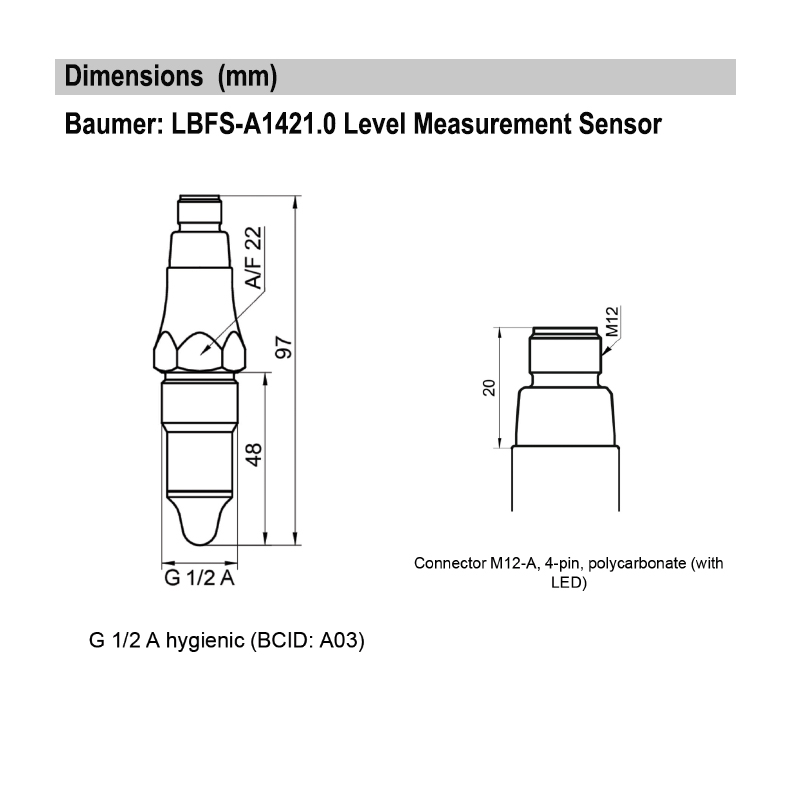

Technical Datasheet:
PDF-Icon LBFS-A1421.0
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Point level (Frequency Sweep) detection Sensor for Hygienic and Industrial applications
  • Wide variety of Process Connections
  • Optional Marine, ATEX, WHG and cULus approval
  • Compact and robust Stainless Steel housing
  • Reliable in diverse media
  • Process temperatures up to 200 Degree C
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : LBFS
Sensor Type : Level Measurement
Housing Material : Stainless Steel
Power Supply : 12-30 Vdc
Output : PNP
Electrical Connection : M12-A, 4-Pin, Polycarbonate with LED
Process Connection : G 1/2 A Hygienic (A03)
Material of Process Connection : SS AISI 316L (1.4404)
Explosion Proof Protection : cUL listed, E365692
Configuration : Factory Settings
Gasket : Without
Protection : IP 67
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
