LBFS-11L22.0

CleverLevel Point Level Measurement Sensor; SS Housing; ATEX II 1G Ex ia IIC T5 Ga Approved; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Polycarbonate with LED; Process Connection: G 1/2A Hygienic, Sliding Connection, Length 250 mm(A03), SS AISI 316L (1.4404); Output: NPN; Factory configured

Manufacturer: Baumer
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Point level (Frequency Sweep) detection Sensor for Hygienic and Industrial applications
  • Wide variety of Process Connections
  • Optional Marine, ATEX, WHG and cULus approval
  • Compact and robust Stainless Steel housing
  • Reliable in diverse media
  • Process temperatures up to 200 Degree C
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : LBFS
Sensor Type : Level Measurement
Housing Material : Stainless Steel
Power Supply : 12-30 Vdc
Output : NPN
Electrical Connection : M12-A, 4-Pin, Polycarbonate with LED
Process Connection : G 1/2 A Hygienic, Sliding Connection, Length 250mm (A03)
Material of Process Connection : SS AISI 316L (1.4404)
Explosion Proof Protection : ATEX II 1G Ex ia IIC T5 Ga
Configuration : Factory Settings
Gasket : Without
Protection : IP 67
Special Notes

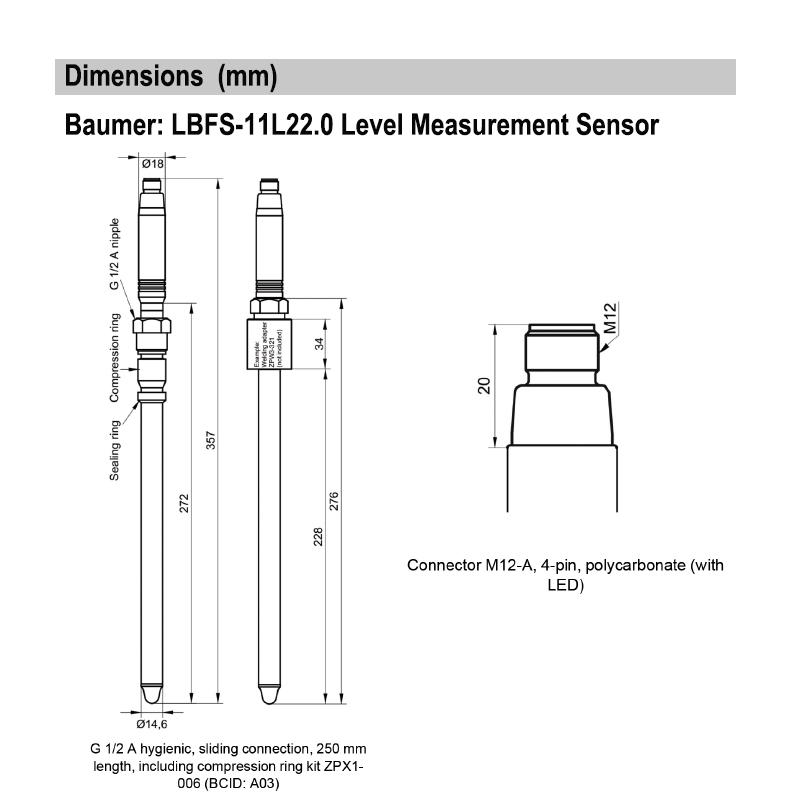

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
