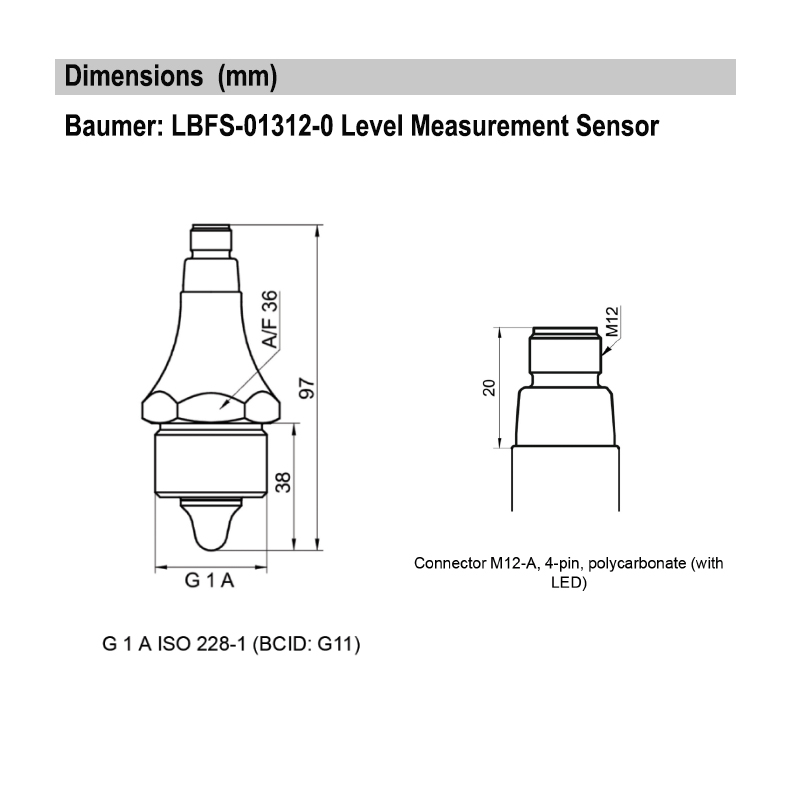

CleverLevel Point Level Measurement Sensor; SS Housing; Standard Approval; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Polycarbonate with LED; Process Connection: G 1A ISO 228-1(G11), SS AISI 304 (1.4301); Output: NPN; Factory configured
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
CleverLevel Point Level Measurement Sensor; SS Housing; Standard Approval; Power Supply: 12-30 Vdc; Electrical Connection: 5-Meter PVC Cable outlet, 4-Wire; Process Connection: G 1A ISO 228-1 for reverse assembly (in-shell thread) (T10), SS AISI 304 (1.4301); Output: PNP; Factory configured
CleverLevel Point Level Measurement Sensor; SS Housing; Standard Approval; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Stainless Steel without LED; Process Connection: G 1/2A ISO 228-1(G07), SS AISI 316L (1.4404); Output: PNP; Factory configured
CleverLevel Point Level Measurement Sensor; SS Housing; Standard Approval; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Polycarbonate with LED; Process Connection: G 1A ISO 228-1(G11), SS AISI 316L (1.4404); Output: PNP; Factory configured
CleverLevel Point Level Measurement Sensor; SS Housing; Standard Approval; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Stainless Steel without LED; Process Connection: G 1/2A Hygienic(A03), SS AISI 316L (1.4404); Output: PNP; Factory configured
CleverLevel Point Level Measurement Sensor; SS Housing; Standard Approval; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Polycarbonate with LED; Process Connection: G 1A ISO 228-1 for reverse assembly (in-shell thread) (T10), SS AISI 304 (1.4301); Output: PNP; Factory configured
CleverLevel Point Level Measurement Sensor; SS Housing; Standard Approval; Power Supply: 12-30 Vdc; Electrical Connection: M12-A, 4-Pin, Polycarbonate with LED; Process Connection: G 1/2A Hygienic, Sliding Connection, Length 250 mm(A03), SS AISI 316L (1.4404); Output: PNP; Factory configured
LBFS-01312.0
