LBFI-21.010.G07020.1.0000.0

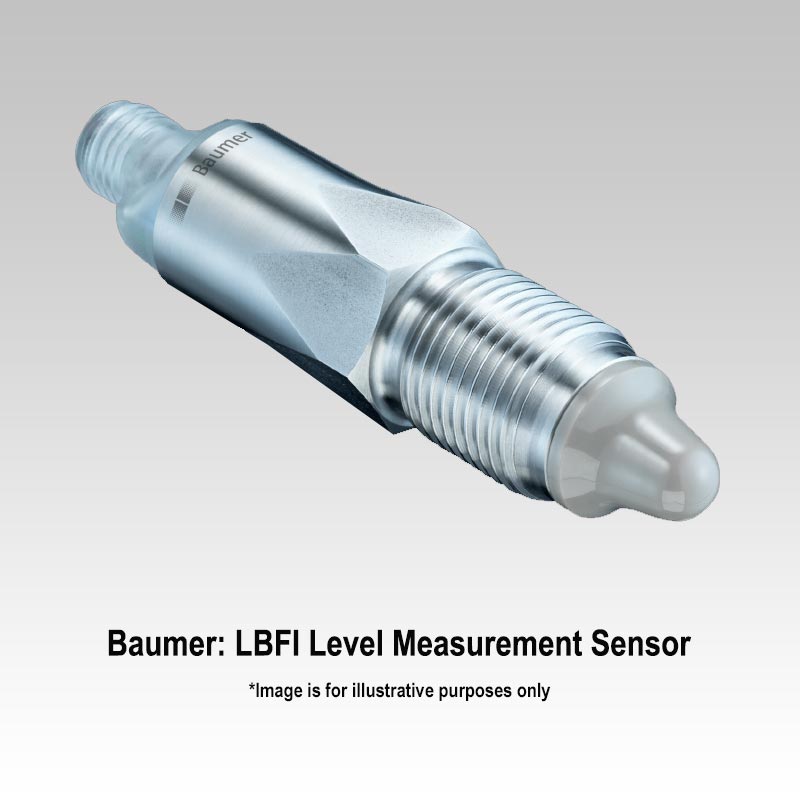

CleverLevel Point Level Measurement Sensor; with Programmable Output, IO-Link; Housing: Stainless Steel AISI 316L (1.4404); Power Supply: 8-36 Vdc; Electrical Connection: M12-A, 4-Pin, Polycarbonate with LED; Process Connection: G 1/2A ISO 228-1(G07), SS AISI 316L (1.4404); Without Gasket; Output: PNP; Without Ex-Proof; Standard Approvals; Factory configured

Manufacturer: Baumer
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Point level (Frequency Sweep) detection Sensor for Industrial applications
  • Optionally with adaptive trigger
  • Optional ATEX and IECEx certified for dust and gas
  • Compact and robust Stainless Steel housing
  • Problem solver for adhesions
  • Two adjustable switching outputs
  • 360 Degree visible multicolor LED
  • IO-Link interface
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : LBFI
Sensor Type : Level Measurement
Version Type : Programmable O/p, IO-Link
Housing Material : SS AISI 316L (1.4404)
Power Supply : 8-36 Vdc
Output : PNP
Electrical Connection : M12-A, 4-Pin, Polycarbonate with LED

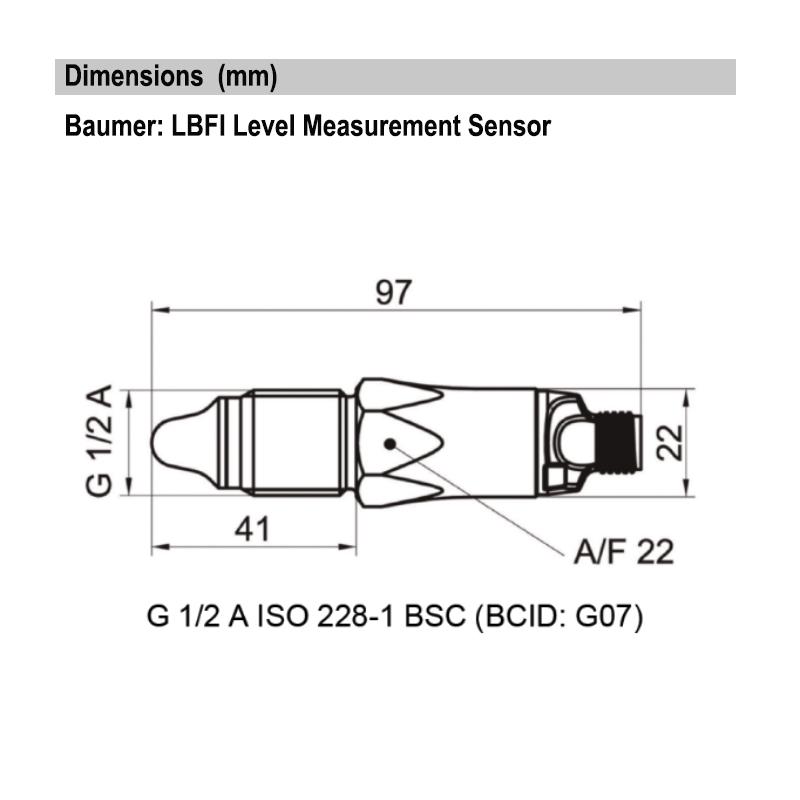

Process Connection : G 1/2 A ISO 228-1 (G07)
Material of Process Connection : SS AISI 316L (1.4404)
Explosion Proof Protection : Without
Industrial Approvals : Standard
Special Approvals : Standard
Configuration : Factory Settings
Gasket : Without
Protection : IP 67
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
