TDP0,2LT-5 B10

LongLife DC Tachogenerator with B10 EURO Flange mounting and Solid Shaft (11k6 x 30); with own bearings; Uo: 40Vdc/1000rpm; IP 55

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Features

  • Low response time
  • Open Circuit Voltage 40mV per rpm
  • B10 Euro Flange (Diameter 115mm - PCD 100mm) mounting with Solid Shaft Diameter 11mm (Std Shaft 11k6 X 30mm)
  • Very high resistance to shock
  • High signal quality due to patented LongLife technology
  • Recognition of sense of rotation possible via control

Optional

  • Marine Air Protected - tropicalized Version
  • Optional Second Shaft End (B14)
  • B3 Foot mounting Version
  • Version TDPZ with Redundant output
  • K35/K50/K60 - Spring Disk Isolated Couplings
  • Spare Original Carbon Brush replacement Set available
Technical Data
Manufacturer : Baumer Hübner
Approval : CE
OutPut Voltage : 40Vdc/1000rpm
Connection Type : Terminal Box
Series : TDP0,2
Weight : 2.4 KG
Shaft Type : Solid Shaft Driven
Mounting Type : B10 EURO Flange (Dia. 115mm; PCD: 100mm)
Output Signal : Single
Special Notes

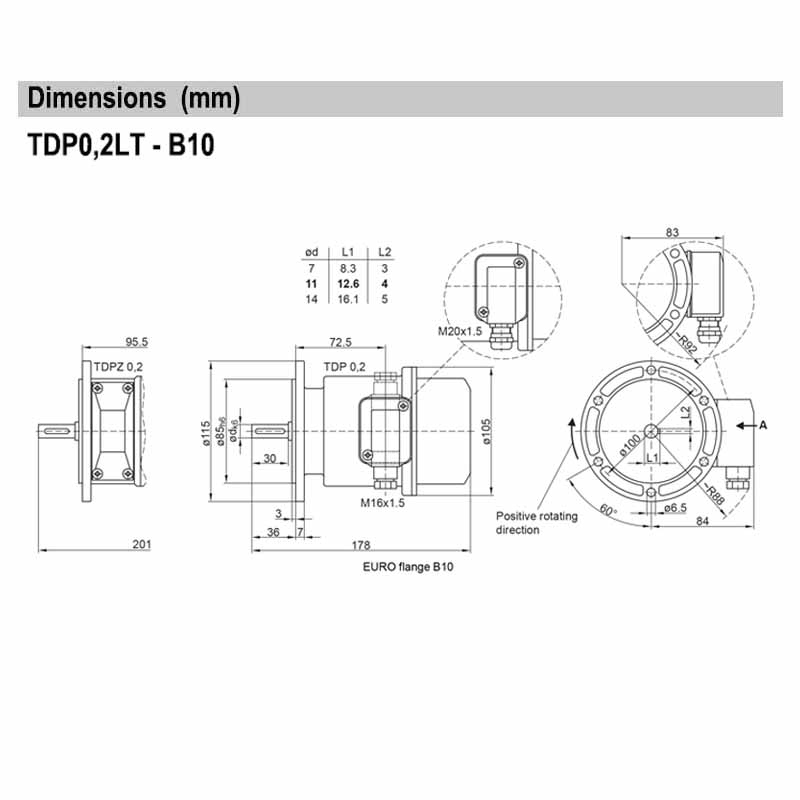

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
