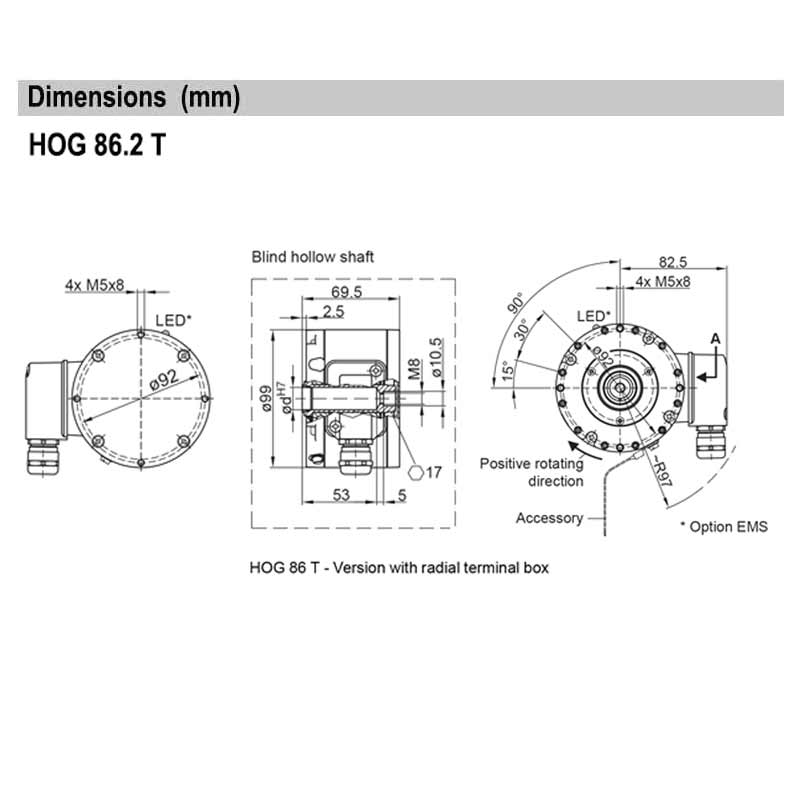

Blind Hollow Shaft HeavyDuty Incremental Encoder; Function Control EMS; PA Insulated Bearings; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 1024 ppr; Radial Terminal Box connection; IP 66
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
M6 Torque Arm for Baumer Hubner HeavyDuty Hollow Shaft Incremental Encoders; L: 460mm (max.), shortenable to minimum: 135mm; with ball joints of 6mm

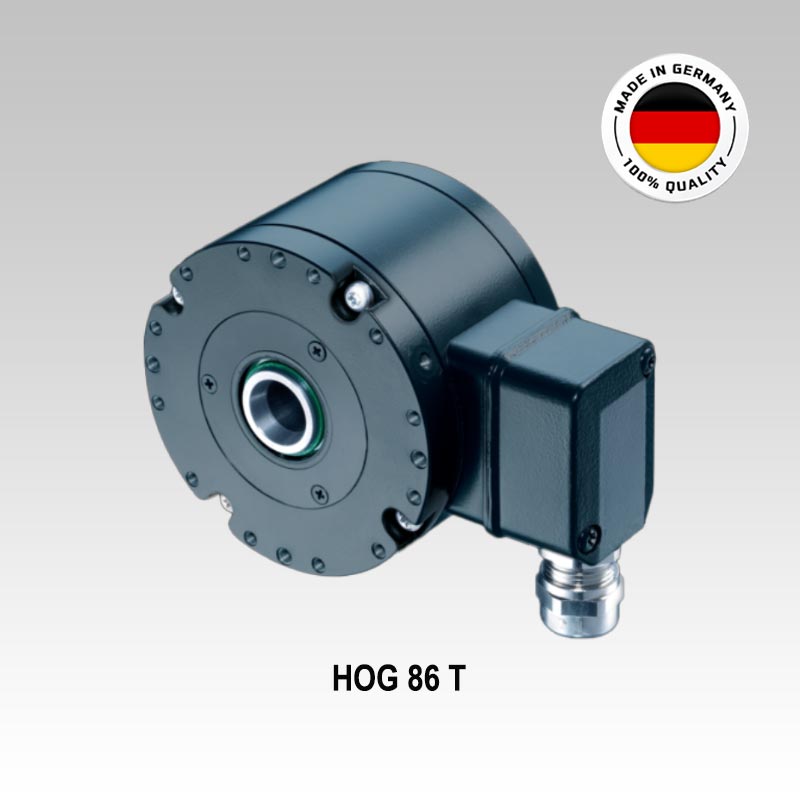

Blind Hollow Shaft HeavyDuty Incremental Encoder; Function Control EMS; PA Insulated Bearings; Bore Dia. 12mm (12H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 2048 ppr; Radial Terminal Box connection; IP 66

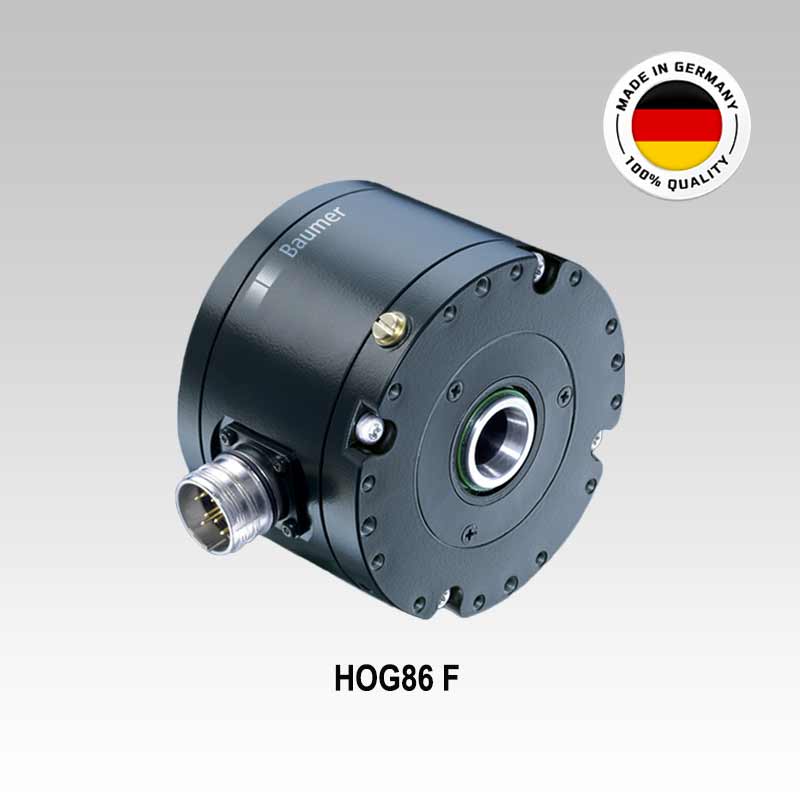

Blind Hollow Shaft HeavyDuty Incremental Encoder; Function Control EMS; Hybrid Bearings; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 2500 ppr; M23 12-Pin Radial Flange Connector; IP 66
HOG86.2TP6DN1024I
