HOG75DN1024CI-24H7-KLR-A

Through Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 24mm (24H7x53mm); Mounting with Clamping Ring on Front Side; Supply Voltage: 9 to 26 Vdc; Output Signals: HTL-C with Inverted Signals (6-Channels); 1024 ppr; Terminal Connection - Radial exit; IP 56

Manufacturer: Baumer Hübner
Country of Origin : Germany
Technical Datasheet:
PDF-Icon HOG75DN1024CI-24H7-KLR-A
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Through Hollow Shaft Bore Dia. 24mm
  • Optical Sensing method
  • Compact, robust aluminium housing
  • Inside connecting terminals, radial cable gland exit
  • Especially high resistance to vibrations

Optional

  • Hybrid bearing for extended service life (HOG 75C)
  • 5 VDC/TTL or 9 to 26 Vdc - Output Stage TTL with inverted signals
  • Bore Dia.: 12, 14, 16, 18, 19, 20, 22, 25, 26mm (H7)
  • Other PPR's available: 250, 256, 500, 512, 720, 1024, 1200, 1250, 2048, 2500
  • Especially high resistance to vibrations
  • Mounting with Clamping Ring on rear side
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Through Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 24 mm
Mounting Type : Torque Arm/Support Plate
Encoder Type : Incremental
Output Signal : HTL-C
PPR : 1024 ppr
Supply Voltage : 9 to 26 Vdc
Connection Type : Terminal Connection - Radial
Operating Temperature : From -30 °C to +85 °C
Protection : IP 56
Approval : CE, UL Approval / E217823
Weight : 0.58 KG
Special Notes

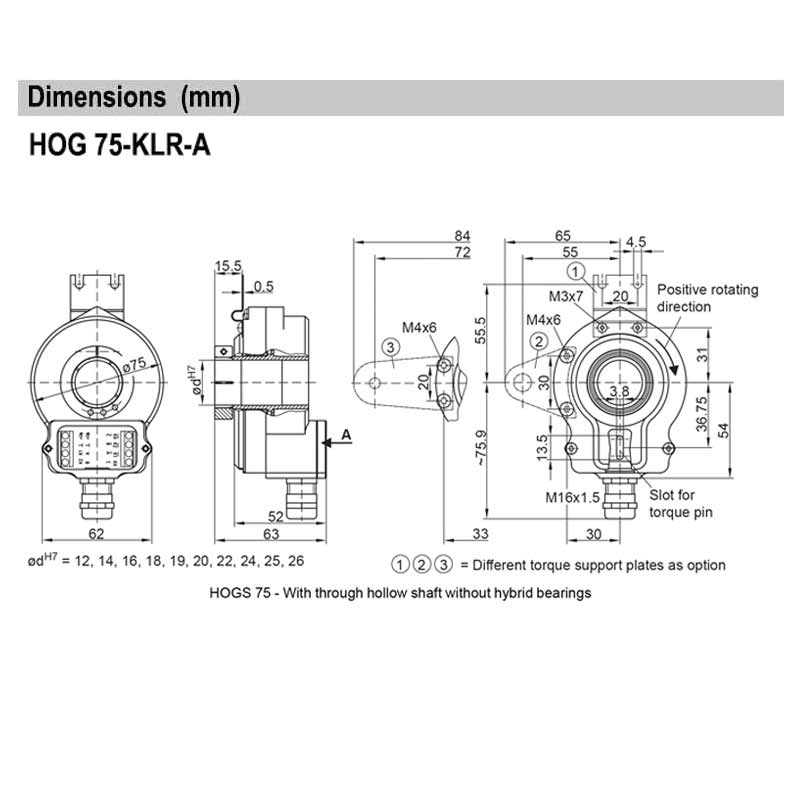

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
