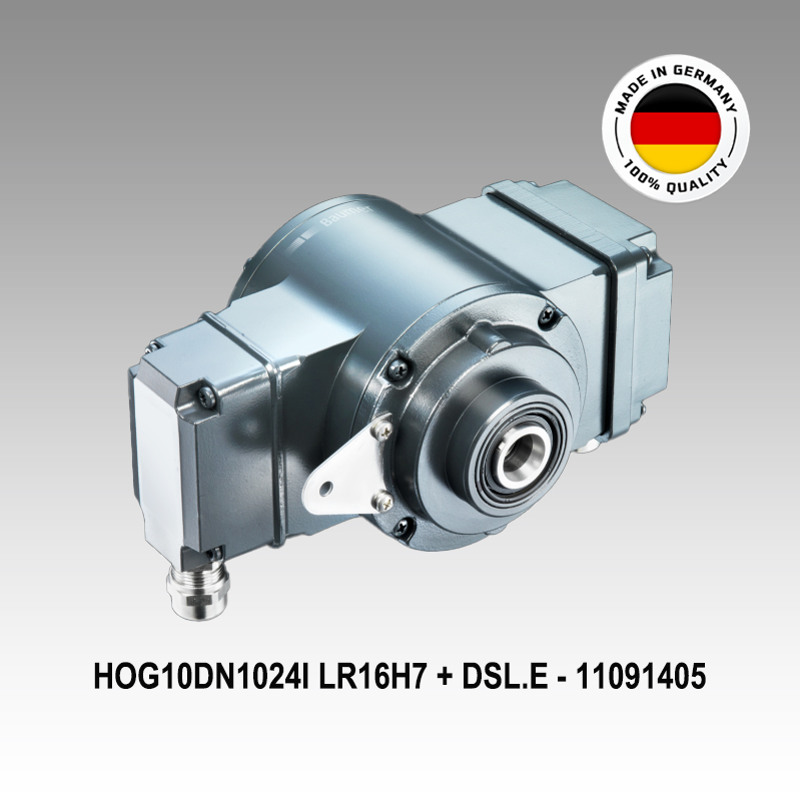

HOG10DN1024I-LR-16H7 + DSL.E - 11091405

HeavyDuty Blind Hollow Shaft Incremental Encoder with integrated programmable, Digital Speed Switch: Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9-30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 1024 ppr; Dust Protection; Connection: Terminal Cover; IP 66. Digital Speed Switch: 2 outputs, speed control and 1 control output.

Manufacturer: Baumer Hübner
Country of Origin : Germany
Technical Datasheet:
PDF-Icon HOG10DN1024I-LR-16H7 + DSL.E - 11091405
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Freely programmable on and off switching speed
  • Programming via included software (RS485 interface)
  • Hybrid bearing for extended service life
  • High shaft load up to 450 N axial, 600 N radial
  • Shock resistant up to 200 g, 6ms
  • Shaft insulation up to 2.8 kV
  • Terminal Box - Radial

Optional

  • 5 VDC - Output Stage TTL with inverted signals
  • Other PPR's available: 512, 2048, 2500
  • Sealing system for tropical environments
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 16 mm
Mounting Type : Support Plate R69
Encoder Type : Incremental
Output Signal : HTL
PPR : 1024 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Terminal Box - Radial
Operating Temperature : From -30 °C to +85 °C
Protection : IP 66
Approval : CE
Weight : 3.1 KG
Interface (Speed Switch) : RS485
Switching Accuracy (Speed Switch) : +/-2%
Switching Outputs (Speed Switch) : 2 Outputs, Speed Control and 1 Control Output
Output Switching Capacity (Speed Switch) : 5 to 230 Vac / 50 to 250 mA
Switching Delay Time (Speed Switch) : less than 40 ms
Special Notes

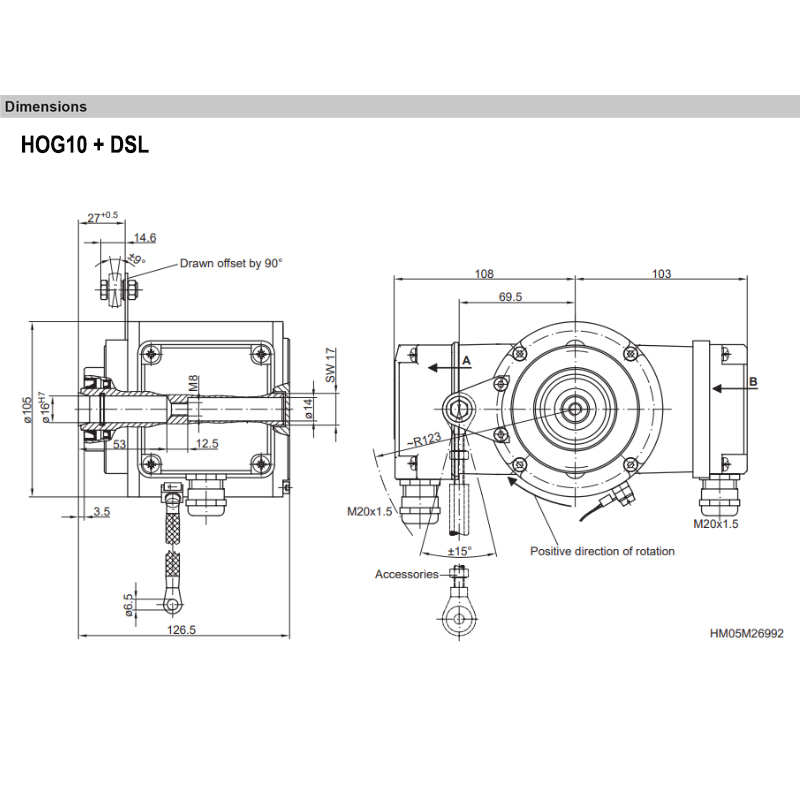

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
