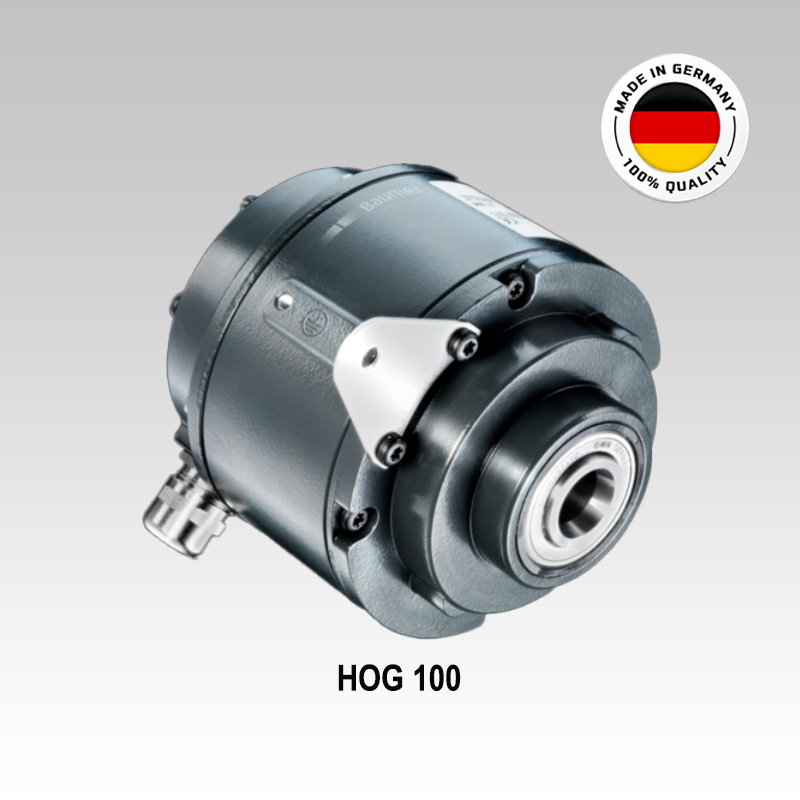

HOG100DN5000I-LR-16H7-KLK-AX

Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 5000 ppr; Dust Protection; Connection: Terminal Cover - Axial; IP 66

Manufacturer: Baumer Hübner
Country of Origin : Germany
Technical Datasheet:
PDF-Icon HOG100DN5000I-LR-16H7-KLK-AX
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Robust housing
  • Hybrid bearing for extended service life
  • Two bearings with large distance, one at each end
  • High shaft load up to 450 N axial, 600 N radial
  • Shock resistant up to 300 g, 6ms
  • Shaft insulation up to 2.8 kV
  • Terminal End Cover - Axial

Optional

  • Function control with EMS (Enhanced Monitoring System)
  • 5 VDC or 9 to 30 Vdc - Output Stage TTL with inverted signals
  • Connection: Termainal Box - Radial
  • Conical Shaft Bore 17mm (1:10)
  • Other PPR's available: 1024, 2000, 2048, 2160, 2500, 3072, 4096, 5000, 10000
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 16 mm
Mounting Type : Support Plate R69
Encoder Type : Incremental
Output Signal : HTL
PPR : 5000 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Terminal End Cover - Axial
Operating Temperature : From -30 °C to +85 °C
Protection : IP 66
Approval : CE, UL Approval / E217823
Weight : 1.5 KG
Special Notes

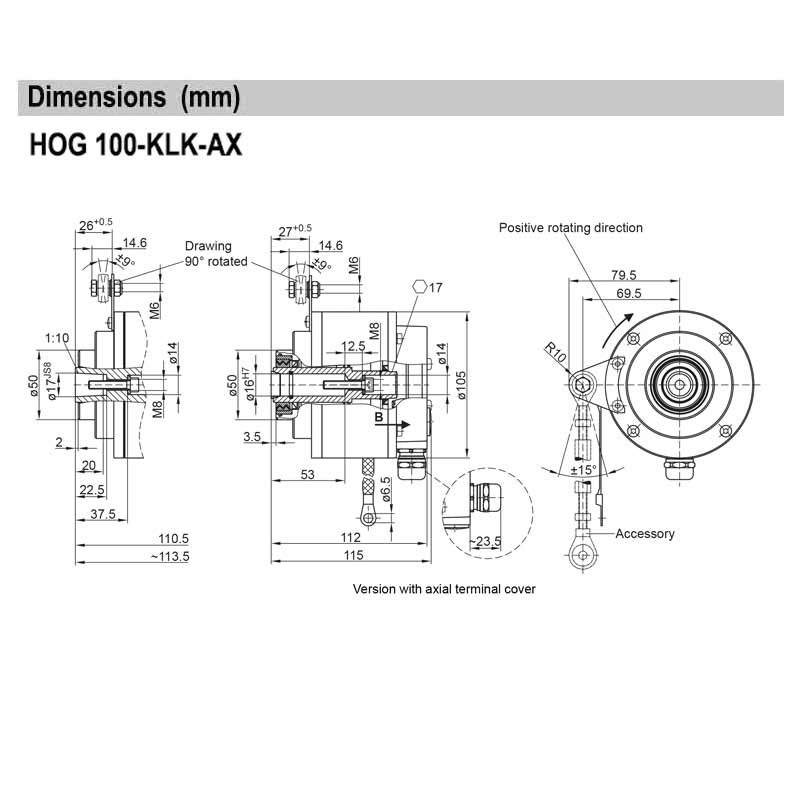

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
ACCESSORIES
ET.51.1007L-M6 Torque Arm
Part No: ET.51.1007L-M6 Torque Arm

M6 Torque Arm for Baumer Hubner HeavyDuty Hollow Shaft Incremental Encoders; L: 460mm (max.), shortenable to minimum: 135mm; with ball joints of 6mm

Data Sheet 1
Packaging: 1
Quantity:
Price on Request
