GT5,05L/407

Blind Hollow Shaft LongLife Bearingless DC Tachogenerator; Bore Dia. 12mm; Uo: 7Vdc/1000rpm; IP 00

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Features

  • Low response time
  • Open Circuit Voltage 7mV per rpm
  • Blind Hollow Shaft - Bore Dia 12mm
  • High signal quality due to patented LongLife technology
  • No auxiliary energy source required
  • Plug-In Terminals

Optional

  • Spare Original Carbon Brush replacement Set available
Technical Data
Manufacturer : Baumer Hübner
Approval : CE
OutPut Voltage : 7Vdc/1000rpm
Connection Type : Plug-In Terminals
Series : GT5
Weight : 0.15 KG
Shaft Type : Blind Hollow Shaft
Mounting Type : Flange mounting (Dia. 52mm; PCD: 42mm)
Output Signal : Single
Special Notes

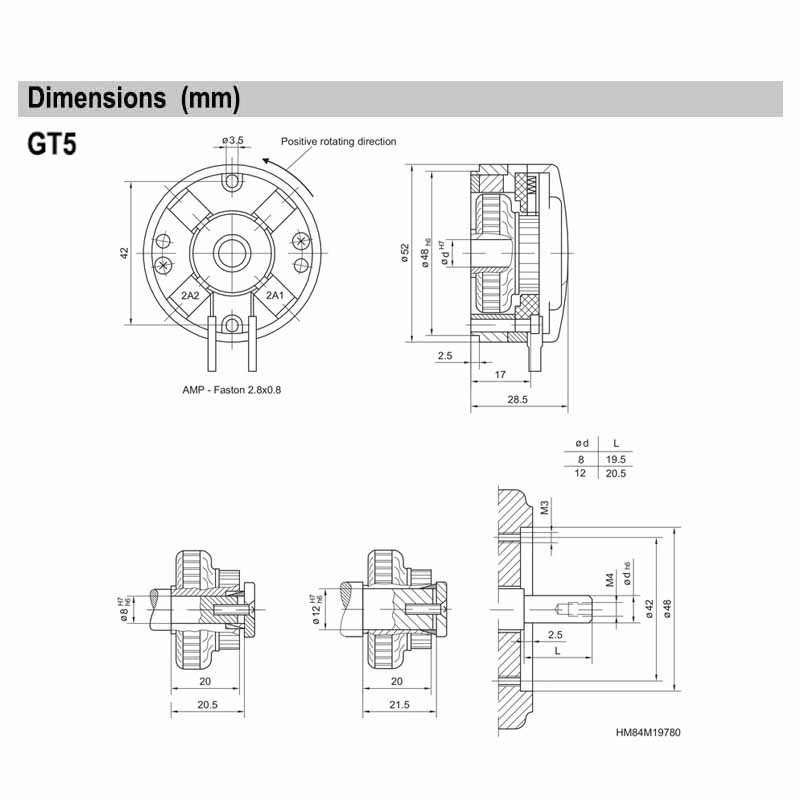

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
