AMG81P29Z0

SingleTurn/MultiTurn HeavyDuty Absolute Encoder; B10 EURO Flange mounting; Solid Shaft 11k6 x 30; Supply Voltage: 9 to 30 Vdc; Interface: Profibus-DPV0; Absolute Resolution: 13-Bit SingleTurn + 16-Bit MultiTurn; Without Incremental Output; With Bus Cover Connection; IP 55

Manufacturer: Baumer Hübner
Country of Origin : Germany
Technical Datasheet:
PDF-Icon AMG81P29Z0
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • HeavyDuty Absolute Encoder with Solid Shaft Dia. 11mm with Keyway, Length 30mm (11k6 X 30mm)
  • Optical sensing method

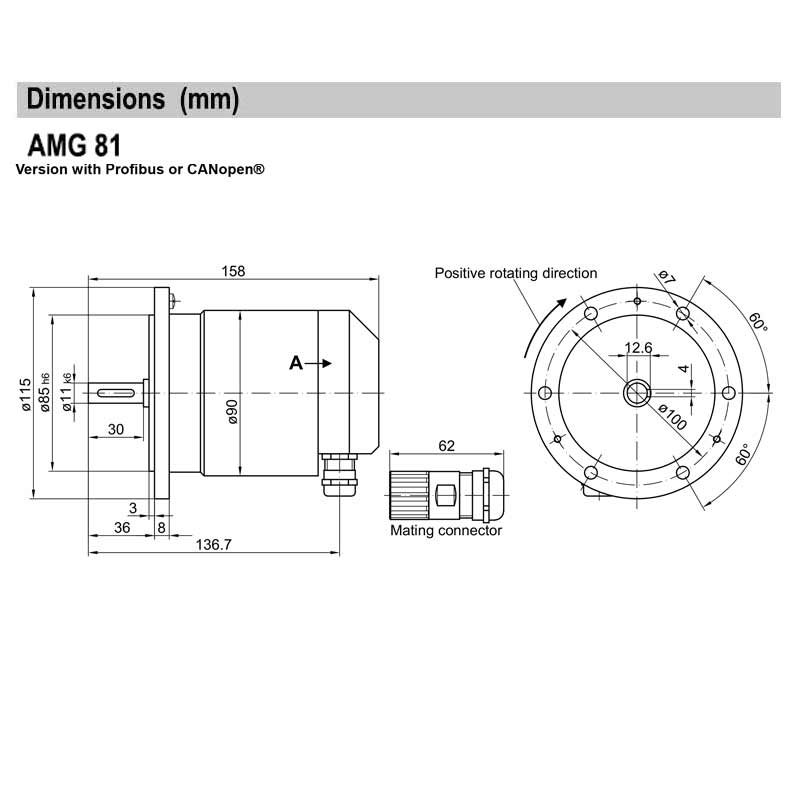

  • B10 Euro Flange mounting (FlangeDia. 115mm - PCD 100mm)
  • 13-Bit SingleTurn + 16-Bit MultiTurn

Optional

  • Additional Incremental Output TTL / HTL - 2048 ppr
  • Interface: SSI; CANopen
  • Absolute Resolution: 13-Bit ST; 13-Bit ST + 12-Bit MT
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 11 mm
Mounting Type : B10 EURO Flange (Dia. 115mm; PCD: 100mm)
Encoder Type : Absolute ST+MT
Sensing Method : Optical
Supply Voltage : 9 to 30 Vdc
Connection Type : Bus Cover
Operating Temperature : From -20 °C to +85 °C
Protection : IP 55
Approval : CE, UL Approval / E256710
Weight : 1.7 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
