EIL580-TT08.5LN.01024.A

Through Hollow Shaft Incremental Encoder with Stator Coupling ø63 mm; Bore ø8 mm, Clamping Ring on A-side; Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet

Manufacturer: Baumer Thalheim
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Body Size Dia. 58mm; Bore Dia. 8mm, Clamping Ring on Side A
  • Precise optical sensing
  • Output Signal Level HTL/Push-Pull
  • Through Hollow Shaft, Stator Coupling Dia. 63mm
  • Connection Radial (Standard Version with 2-Mtrs prewired shielded Cable
  • Protection IP 65 (Standard Version)
  • High resistance to shock and vibrations

Optional

  • Blind or Through Hollow Shaft
  • Assorted mounting Flange: with/without Stator Coupling; Torque Pin
  • Assorted Bore Dia.: 8, 10, 12, 14, 15mm; 3/8", 1/2"; Clamping Ring on B Side
  • Output stage TTL / 5VDC; TTL with regulator UB 8 to 30 VDC; HTL with regulator 4.75 to 30 VDC
  • High protection IP 67
  • Optional Connections: M23, 12-Pin Radial or Axial, Male ccw Connector; M12, 8-Pin, Radial or Axial, Male, ccw Connector; Axial or Tangential Cable outlet
  • Other PPR's available: 100, 120, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000
Technical Data
Manufacturer : Baumer Thalheim
Shaft Type : Through Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 8 mm
Mounting Type : Stator Coupling ø63 mm
Encoder Type : Incremental
Sensing Method : Optical
Output Signal : HTL
PPR : 1024 ppr
Supply Voltage : 8 to 30 Vdc
Connection Type : 2-Mtrs PVC Shielded Cable, Radial Outlet
Operating Temperature : From -40 °C to +85 °C
Protection : IP 65
Approval : UL 508 / CSA 22.2
Weight : 0.3 KG
Special Notes

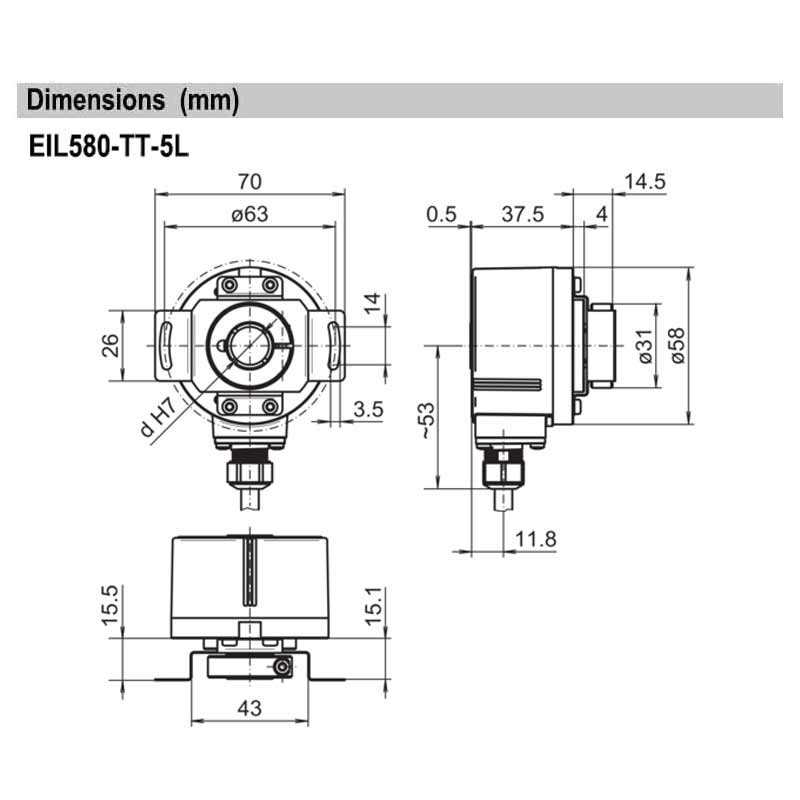

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
