EIL580-SY06.7FE.02500.A

Incremental Encoder with Synchro Flange mounting and Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 5 Vdc; TTL/RS422 compatible, 6-Channels; 2500 ppr; IP 67; Flange Socket Radial, M23, 12-pin, Male contacts, CCW

Manufacturer: Baumer Thalheim
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

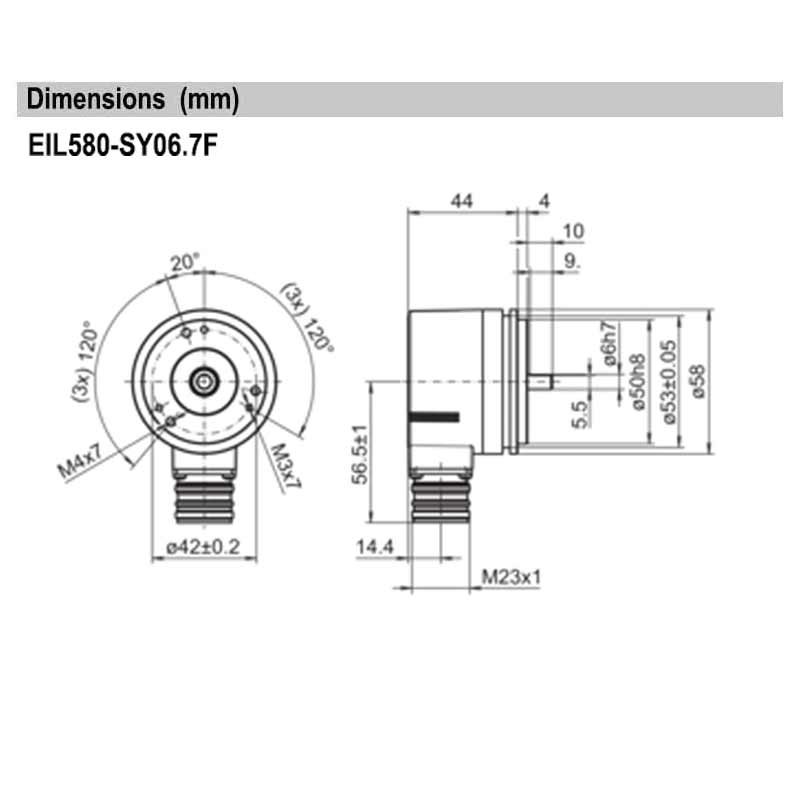

  • Body Size Dia. 58mm Shaft Dia. 6mm, Shaft Length: 10mm
  • Precise optical sensing
  • Output Signal Level TTL
  • Synchro Flange mounting
  • Connection Flange Socket Radial, M23, 12-pin, Male contacts, CCW
  • High protection IP 67
  • High resistance to shock and vibrations

Optional

  • Output stage HTL with regulator UB 8 to 30 VDC; TTL with regulator UB 8 to 30 VDC; HTL with regulator 4.75 to 30 VDC
  • Standard Protection IP 65
  • Optional Connections: M23, 12-Pin Radial or Axial, Male ccw Connector; M12, 8-Pin, Radial or Axial, Male, ccw Connector; Axial or Tangential Cable outlet
  • Other PPR's available: 100, 120, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000
Technical Data
Manufacturer : Baumer Thalheim
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 6 mm
Mounting Type : Synchro Flange
Encoder Type : Incremental
Sensing Method : Optical
Output Signal : TTL/RS422
PPR : 2500 ppr
Supply Voltage : 5 Vdc
Connection Type : Flange Socket Radial, M23 12-pin, Male, CCW
Operating Temperature : From -40 °C to +85 °C
Protection : IP 67
Approval : UL 508 / CSA 22.2
Weight : 0.3 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.
