EIL580-SY06.5LN.01250.A - 11127836

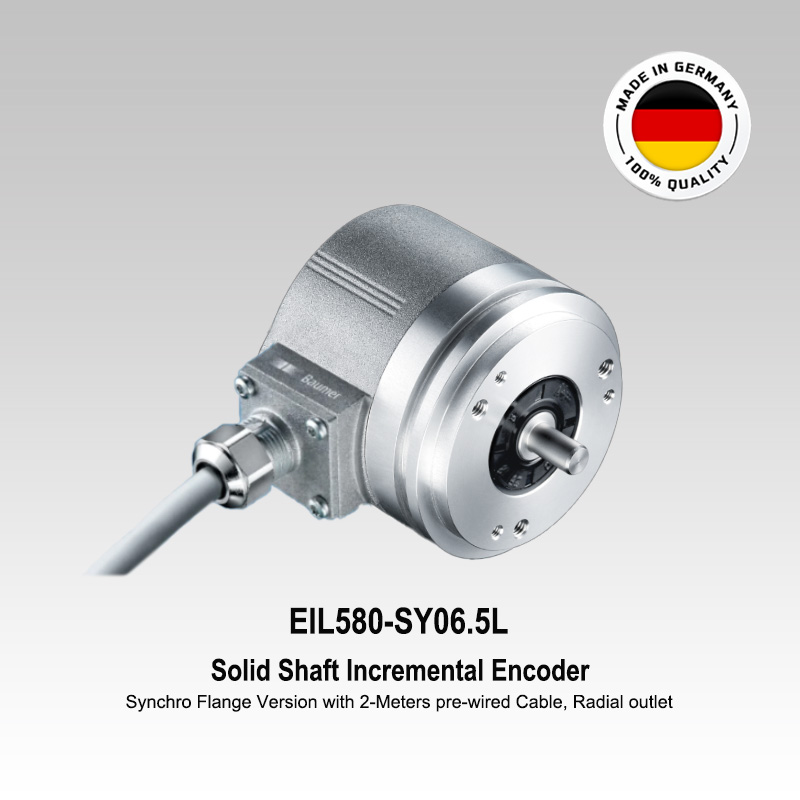

Incremental Encoder with Synchro Flange mounting and Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 8 to 30 Vdc; HTL/Push Pull, 6-Channels; 1250 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet

Manufacturer: Baumer Thalheim
Country of Origin : Germany
Technical Datasheet:
PDF-Icon EIL580-SY06.5LN.01250.A - 11127836
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

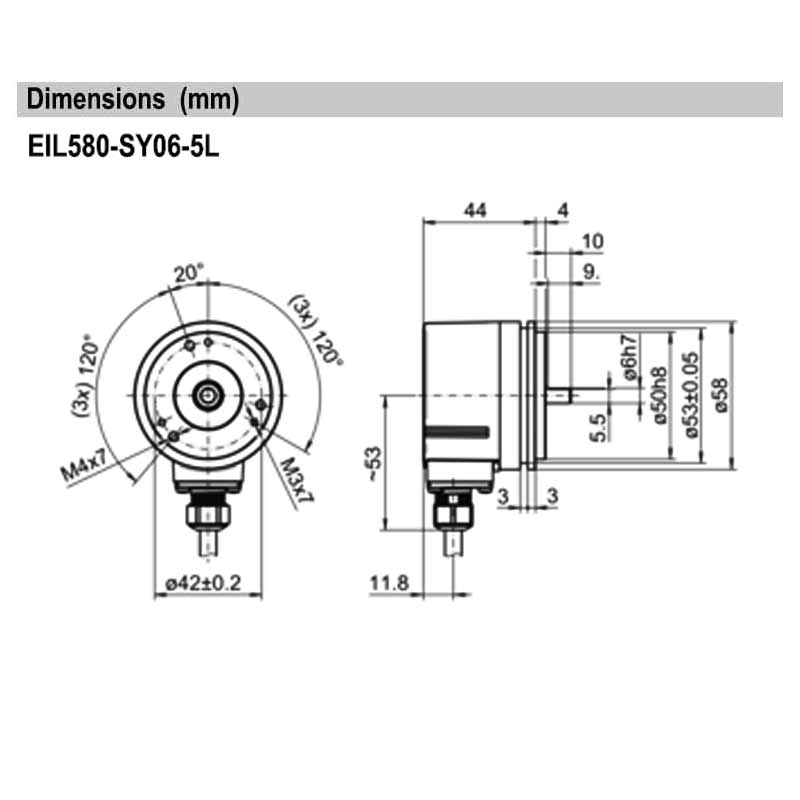

  • Body Size Dia. 58mm Shaft Dia. 6mm, Shaft Length: 10mm
  • Precise optical sensing
  • Output Signal Level HTL / Push Pull
  • Synchro Flange mounting
  • Connection Radial (Standard Version with 2-Mtrs prewired shielded Cable
  • High protection IP 65 (Standard Version)
  • High resistance to shock and vibrations

Optional

  • Output stage HTL with regulator UB 8 to 30 VDC; TTL with regulator UB 8 to 30 VDC; HTL with regulator 4.75 to 30 VDC
  • High protection IP 67
  • Optional Connections: M23, 12-Pin Radial or Axial, Male ccw Connector; M12, 8-Pin, Radial or Axial, Male, ccw Connector; Axial or Tangential Cable outlet
  • Other PPR's available: 100, 120, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000
Technical Data
Manufacturer : Baumer Thalheim
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 6 mm
Mounting Type : Synchro Flange
Encoder Type : Incremental
Sensing Method : Optical
Output Signal : HTL
PPR : 1250 ppr
Supply Voltage : 8 to 30 Vdc
Connection Type : 2-Mtrs PVC Shielded Cable, Radial Outlet
Operating Temperature : From -40 °C to +85 °C
Protection : IP 65
Approval : UL 508 / CSA 22.2
Weight : 0.3 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
ACCESSORIES
K35
Part No: K35

Spring Disk Coupling. (Bore Dia. 6 to 12mm with/without keyway on both ends)

Data Sheet 1
Packaging: 1
Minimum: 1
Multiples of: 1
Quantity:
Price on Request
