EIL580-SC10.7BQ.02500.A

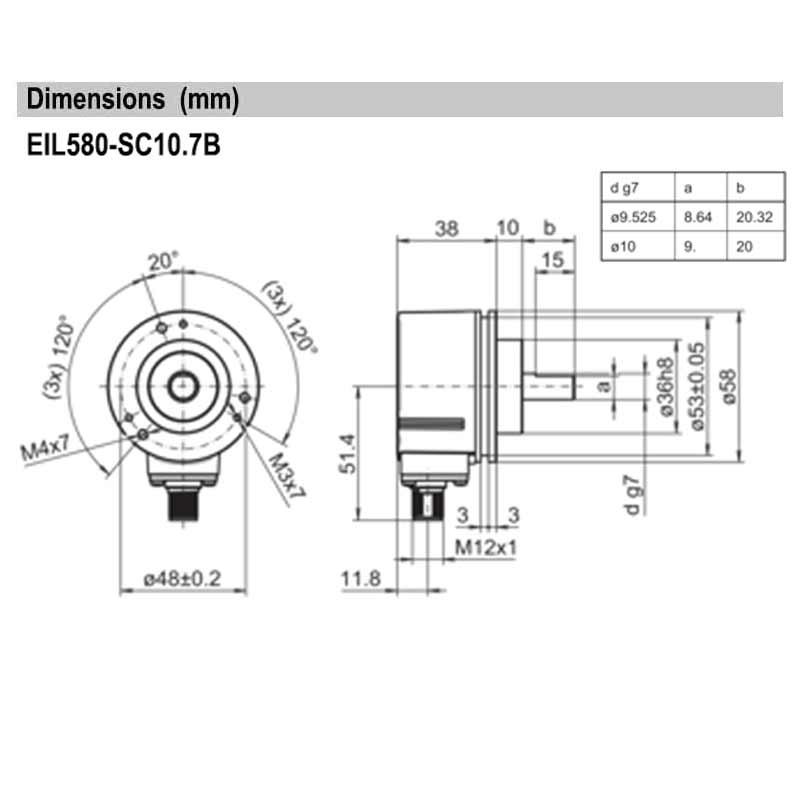

EIL580-SC10.7BQ.02500.A

Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 4.75 to 30 Vdc; HTL/Push-Pull 6-Channels; 2500 ppr; IP 67; M12 8-Pins Radial Flange Socket, Male Contacts, CCW

Manufacturer: Baumer Thalheim

Country of Origin : Germany

Technical Datasheet:

EIL580-SC10.7BQ.02500.A

Datasheet 2

Datasheet 3

Packaging Quantity: 1

Minimum Order Quantity: 1

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Body Size Dia. 58mm; Shaft Dia. 10mm, Shaft Length: 20mm
Precise optical sensing
Output Signal Level HTL
Clamping Flange mounting
Connection: M12 8-Pins Radial Flange Socket, Male Contacts, CCW
High protection IP 67
High resistance to shock and vibrations

Optional

Output stage HTL / Push-Pull; TTL / 5VDC; TTL with regulator UB 8 to 30 VDC
Standard Protection IP 65
Optional Connections: M23, 12-Pin Axial, Male ccw Connector; M12, 8-Pin, Radial or Axial, Male, ccw Connector; Radial, Axial orTangential Cable outlet
Other PPR's available: 100, 120, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000

Technical Data

Manufacturer : Baumer Thalheim

Shaft Type : Solid Shaft Driven

Shaft (S)/Bore (B) Dia. : S: 10 mm

Mounting Type : Clamping Flange

Encoder Type : Incremental

Sensing Method : Optical

Output Signal : HTL

PPR : 2500 ppr

Supply Voltage : 4.75 to 30 VDC

Connection Type : Flange Socket Radial, M12 8-pin, Male, CCW

Operating Temperature : From -40 °C to +85 °C

Protection : IP 67

Approval : UL 508 / CSA 22.2

Weight : 0.3 KG

Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.

Part No: K60

Baumer Hübner

Spring Disk Coupling. (Bore Dia. 11 to 22mm with/without keyway on both ends)

Data Sheet 1

Packaging: 1

Minimum: 1

Multiples of: 1

Quantity:

Price on Request

Part No: K50

Baumer Hübner

Spring Disk Coupling. (Bore Dia. 11 to 16mm with/without keyway on both ends)

Data Sheet 1

Packaging: 1

Minimum: 1

Multiples of: 1

Quantity:

Price on Request

Part No: K35

Baumer Hübner

Spring Disk Coupling. (Bore Dia. 6 to 12mm with/without keyway on both ends)

Data Sheet 1

Packaging: 1

Minimum: 1

Multiples of: 1

Quantity:

Price on Request

Associated Products

Part No: EIL580-SY06.7LE.02500.A - 11102697

Baumer Thalheim

Incremental Encoder with Synchro Flange mounting and Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 5 Vdc; TTL/RS422 compatible, 6-Channels; 2500 ppr; IP 67; 2-Meters prewired PVC Shielded Cable, Radial Outlet

Data Sheet 1

Packaging: 1

Minimum: 1

Multiples of: 1

Quantity:

Price on Request

Part No: EIL580-SC10.5LN.02500.A - 11111232

Baumer Thalheim

Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 2500 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet

Data Sheet 1

Packaging: 1

Minimum: 1

Multiples of: 1

Quantity:

Price on Request

Part No: EIL580-SC10.7FQ.02500.A

Baumer Thalheim

Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 4.75 to 30 Vdc; HTL/Push-Pull 6-Channels; 2500 ppr; IP 67; Flange Socket Radial, M23, 12-pin, Male contacts, CCW

Data Sheet 1

Packaging: 1

Minimum: 1

Multiples of: 1

Quantity:

Price on Request

Part No: EIL580-SY06.5LE.02500.A - 11152136

Baumer Thalheim

Incremental Encoder with Synchro Flange mounting and Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 5 Vdc; TTL/RS422 compatible, 6-Channels; 2500 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet

Data Sheet 1

Packaging: 1

Minimum: 1

Multiples of: 1

Quantity:

Price on Request

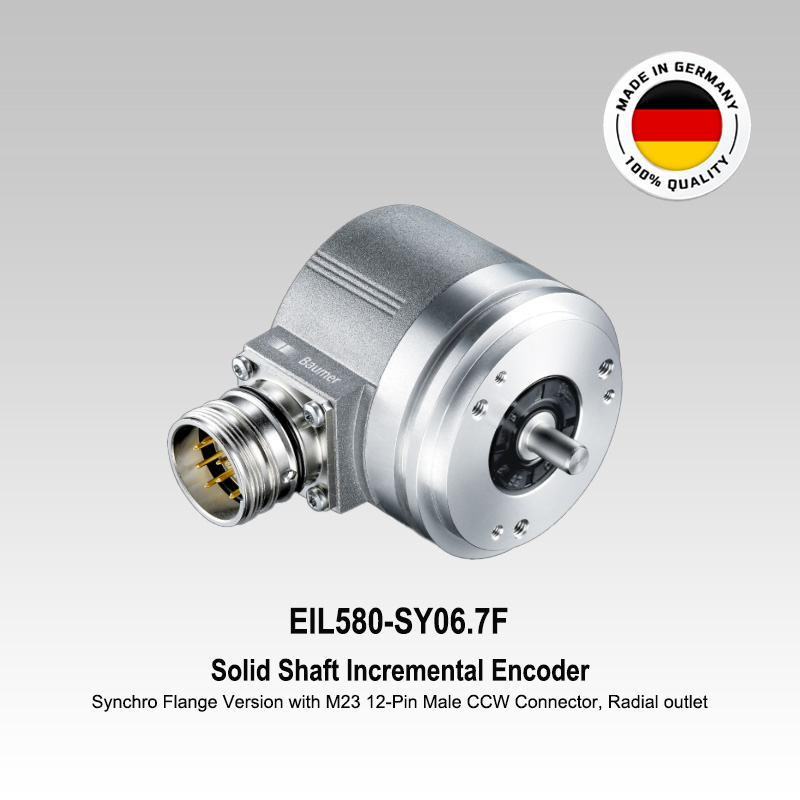

Part No: EIL580-SY06.7FE.02500.A
