CTX-3.2.3.B24.0

Pressure Measurement Sensor; Housing: Stainless Steel 1.4301 AISI 304; Power Supply: 11-30 Vdc; Output Signal: 4 to 20 mA; Process Connection: G 1/4 B EN 837-1 (G30); Sealing: NBR; Measuring Range: 0 to 16 Bar (EN); Output Connection: DIN EN 175301-803 A (DIN 43650 A), 4-Pin

Manufacturer: Baumer
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Pressure Sensor for general Air and Gas applications
  • Relative Pressure measurement from -1 to 200 Bar
  • Robust Ceramic measuring Cell
  • Stainless Steel Housing
  • Compact design
  • Relative Pressure and Vacuum Measurement
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : CTX
Sensor Type : Pressure Measurement
Output : 4 - 20 mA
Measuring Range : 0 to 16 Bar (EN)
Power Supply : 11-30 Vdc
Housing Material : Stainless Steel 1.4301 AISI 304
Electrical Connection : DIN EN 175301-803 A (DIN 43650 A) 4-Pin
Process Connection : G 1/4 B EN 837-1 (G30)
Sealing : NBR
Protection : IP 65
Approval : EMC: EN 61000-6-2; EN 61000-6-3; EN 61326-1
Special Notes

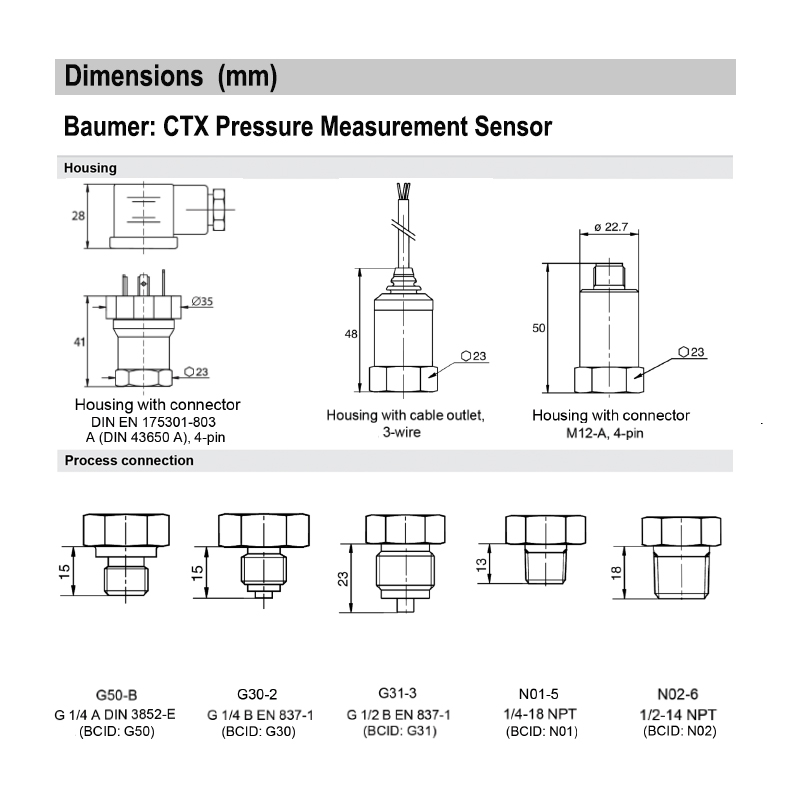

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
