BMSH58S1N24B12/00P2D

Blind Hollow Shaft SingleTurn MAGRES Magnetic Absolute Encoder; Without Stator Coupling; Bore Dia. 12mm, Clamping Ring on A-Side; Supply Voltage: 10 to 30 Vdc; Interface: CANopen®; Absolute Resolution: 12-Bit ST; Connection: Bus Cover with Cable Gland; IP 65

Manufacturer: Baumer
Country of Origin : Germany
Technical Datasheet:
PDF-Icon BMSH58S1N24B12/00P2D
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • SingleTurn MAGRES Magnetic Absolute Encoder with Bus cover
  • Robust Magnetic sensing method
  • Body Size Dia. 58mm
  • Blind Hollow Shaft, Bore Dia. 12mm, Clamping Ring on A-Side
  • Interface: CANopen®
  • Resolution: 12-Bit SingleTurn
  • High protection up to IP 65
  • High resistance to shock and vibrations

Optional

  • Interface: DeviceNet/EtherCAT/EtherNet-IP/SAEJ1939/PROFINET/POWERLINK/Profibus
  • Bore Dia. 15mm
  • Protection: IP 67
Technical Data
Manufacturer : Baumer
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 12 mm
Mounting Type : Without Stator Coupling
Encoder Type : Absolute ST
Sensing Method : Magnetic
Supply Voltage : 10 to 30 Vdc
Connection Type : Bus Cover
Operating Temperature : From -40 °C to +85 °C
Protection : IP 65
Approval : UL approval / E217823
Weight : 0.48 KG
Special Notes

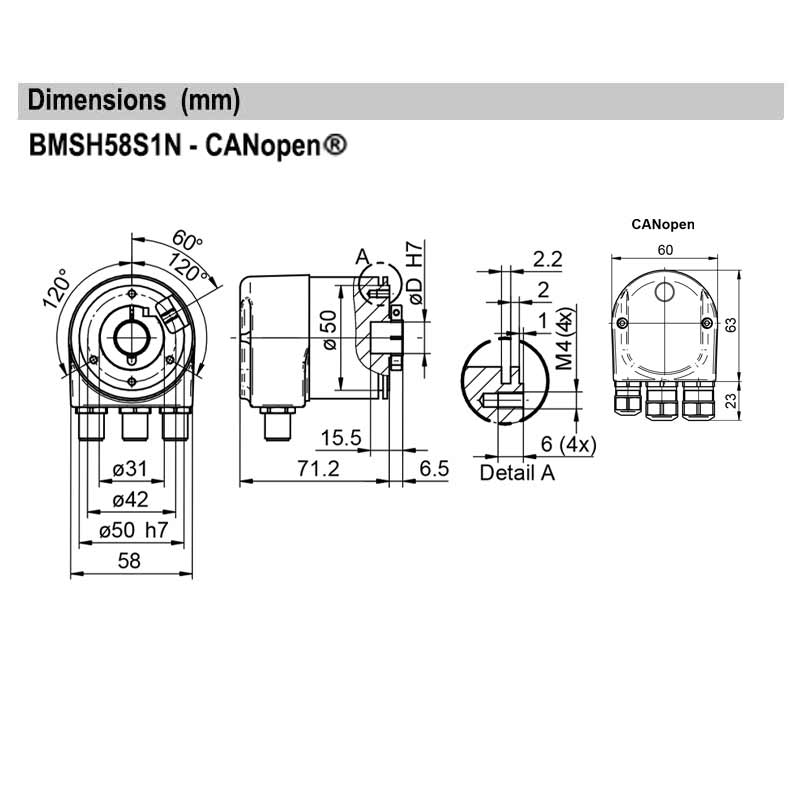

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
